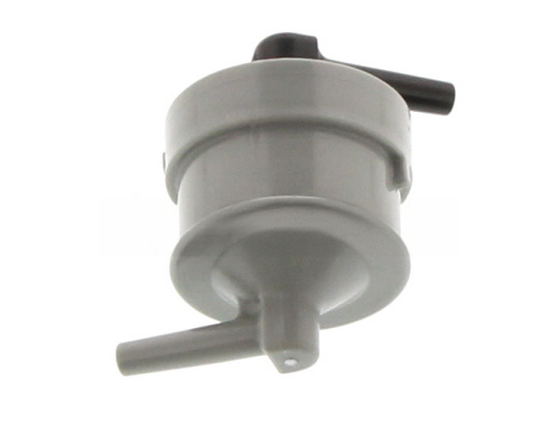

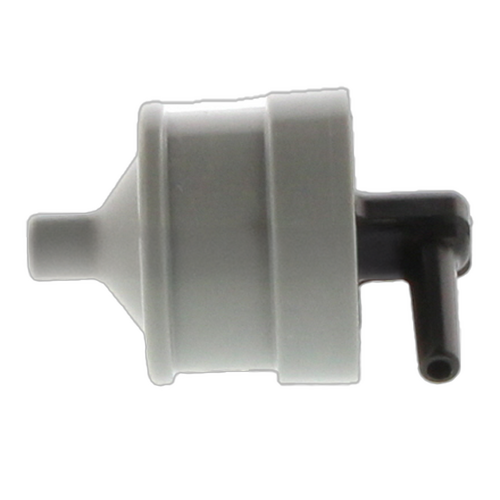

Toyota Turbo Boost MAP Sensor Oil Separator

Part number: 9091711044

Note: This filter is located in the vacuum line connected to the Turbo Boost (MAP) Sensor.

Why it matters:

Toyota uses these MAP Sensor Filters to prevent oil and carbon from entering the MAP Sensor.

Common issues:

These plastic filters can crack or get blocked over time due to age or boost pressure. If this happens, the MAP Sensor can’t accurately read boost levels, which affects fuel delivery—leading to a noticeable loss in power and torque.

Important for CRD engines with VNT turbos:

In Common Rail Diesel engines with Variable Nozzle Turbine (VNT) turbos, any leak or blockage in the line from the intake manifold to the MAP Sensor can be serious. If the ECU can’t read boost pressure correctly, it may close the turbo vanes too much—potentially causing major damage to the turbo or engine.

Suits:

• LandCruiser Prado 90/95 Series (KZJ95) 1KZ-TE 3.0L Turbo Diesel – Built 10/1999 to 08/2002
• LandCruiser Prado 120 Series (KDJ120) 1KD-FTV 3.0L D4D Turbo Diesel – Built 08/2006 to 07/2009
• LandCruiser Prado 150 Series (KDJ150) 1KD-FTV 3.0L D4D Turbo Diesel – Built 08/2009 to 07/2015
• LandCruiser Prado 150 Series (GDJ150) 1GD-FTV 2.8L Turbo Diesel – Built from 06/2015 onwards
• Hilux KZN165 1KZ-TE 3.0L Turbo Diesel – Built 08/2000 to 01/2005
• Hilux KUN16 (2WD), KUN26 (4WD) 1KD-FTV 3.0L D4D Turbo Diesel – Built 08/2006 to 03/2015
• Hilux GUN122, GUN123, GUN125, GUN126, GUN135, GUN136 1GD-FTV 2.8L or 2GD-FTV 2.4L Turbo Diesel – Built from 05/2015 onwards
• Fortuner GUN156 1GD-FTV 2.8L Turbo Diesel – Built from 07/2015 onwards
• RAV4 ALA49 2AD-FTV 2.2L Turbo Diesel – Built 10/2015 to 09/2018
• HiAce GDH300, GDH303, GDH320, GDH322 1GD-FTV 2.8L Turbo Diesel – Built from 02/2019 onwards

If unsure please provide V.I.N number to check compatibility prior to purchase
